10 Cooling System Components and the Failure Signs to Watch For

Your vehicle's cooling system stands as one of the most vital networks within your automobile, orchestrating a complex dance of components that work tirelessly to prevent catastrophic engine failure. This intricate system manages the delicate balance between optimal operating temperature and destructive overheating, circulating coolant through a precisely engineered network of passages, chambers, and heat exchangers. When functioning properly, the cooling system maintains engine temperatures between 195-220°F, ensuring peak performance, fuel efficiency, and longevity. However, when components begin to fail, the consequences can be swift and devastating, potentially leading to complete engine seizure, warped cylinder heads, blown gaskets, and repair bills that can exceed the vehicle's value. Understanding the warning signs of cooling system component failure is not merely beneficial—it's essential for every vehicle owner who wants to avoid being stranded on the roadside with steam billowing from under their hood. The ten critical components we'll explore each play a unique role in this thermal management symphony, and recognizing their distress signals can mean the difference between a minor repair and a major mechanical catastrophe.

1. The Radiator - Your Engine's Primary Heat Exchanger

The radiator serves as the cooling system's primary heat exchanger, functioning as a sophisticated network of tubes and fins designed to dissipate the tremendous heat generated by your engine's combustion process. This aluminum or brass component typically features a core construction with hundreds of small tubes through which hot coolant flows, surrounded by thin metal fins that maximize surface area for heat transfer. When air passes through these fins—either from vehicle movement or fan operation—it carries away the heat, cooling the coolant before it returns to the engine block. Radiator failure manifests through several distinct warning signs that demand immediate attention. Visual inspection may reveal external corrosion, particularly around the seams and mounting points, where rust-colored stains indicate internal deterioration. Coolant leaks beneath the vehicle, especially when parked overnight, often originate from radiator tube corrosion or damaged seams. Additionally, if you notice the engine temperature gauge climbing higher than normal during regular driving conditions, or if the radiator fins appear clogged with debris, insects, or bent from impact, these are clear indicators that your radiator's heat dissipation capacity has been compromised. Internal blockages, often caused by coolant contamination or improper maintenance, can also reduce flow rates and cooling efficiency, leading to localized hot spots and eventual system failure.

2. Water Pump - The Heart of Coolant Circulation

The water pump functions as the cardiovascular heart of your cooling system, utilizing a centrifugal impeller driven by the engine's crankshaft to maintain continuous coolant circulation throughout the entire network. This critical component typically operates through a belt-driven pulley system, though some modern vehicles employ electric water pumps for improved efficiency and control. The pump's impeller creates the necessary pressure differential to push coolant through the engine block's water jackets, up through the cylinder heads, and out to the radiator for heat dissipation before returning to complete the circuit. Water pump failure presents several unmistakable warning signs that progressively worsen if ignored. The most obvious indicator is coolant leakage from the pump's weep hole, a small drainage port designed to prevent coolant from reaching the pump's bearings when seals begin to fail. Audible symptoms include grinding, squealing, or rumbling noises emanating from the front of the engine, particularly during startup or acceleration, indicating bearing wear or impeller damage. Visual inspection may reveal play or wobbling in the pump pulley when manually tested with the engine off. Additionally, if your engine begins overheating despite adequate coolant levels and a functioning radiator, a failing water pump impeller—either due to corrosion, cavitation damage, or complete separation from the shaft—may be unable to maintain proper circulation rates, creating dangerous hot spots within the engine block.

3. Thermostat - The Temperature Control Gatekeeper

The thermostat operates as an ingenious temperature-sensitive valve that regulates coolant flow between the engine and radiator, ensuring optimal operating temperatures while facilitating rapid warm-up periods. This seemingly simple device contains a wax-filled cylinder that expands and contracts with temperature changes, mechanically opening and closing the valve at predetermined temperatures—typically between 180-195°F for most vehicles. When the engine is cold, the thermostat remains closed, allowing coolant to circulate only within the engine block and heater core, promoting faster warm-up and improved fuel economy. Once the target temperature is reached, the thermostat gradually opens, allowing hot coolant to flow to the radiator for cooling. Thermostat failure typically occurs in one of two modes, each presenting distinct symptoms that can help diagnose the problem. A thermostat stuck in the closed position will cause rapid overheating, as coolant cannot reach the radiator for heat dissipation, often resulting in steam, boiling coolant, and potential engine damage within minutes of operation. Conversely, a thermostat stuck in the open position will prevent the engine from reaching proper operating temperature, manifesting as prolonged warm-up periods, poor heater performance, reduced fuel economy, and increased emissions. Additional warning signs include erratic temperature gauge readings, where the needle fluctuates unpredictably, or coolant flow visible in the radiator when the engine is cold, indicating premature thermostat opening that disrupts the system's thermal management strategy.

4. Radiator Cap - The Pressure System Guardian

The radiator cap performs the crucial dual function of sealing the cooling system while maintaining optimal operating pressure, typically between 13-16 PSI, which raises the coolant's boiling point and improves overall system efficiency. This deceptively simple component incorporates two spring-loaded valves: a pressure valve that prevents excessive system pressure by venting to the overflow reservoir, and a vacuum valve that allows coolant to return from the reservoir as the system cools and contracts. The increased pressure created by a properly functioning radiator cap raises water's boiling point from 212°F to approximately 250°F, providing a crucial safety margin that prevents coolant vaporization under normal operating conditions. Radiator cap failure can compromise the entire cooling system's effectiveness and present several identifiable warning signs. Visual inspection may reveal obvious damage such as cracked rubber seals, corroded metal surfaces, or bent mounting tabs that prevent proper sealing. If you notice coolant loss without visible external leaks, a failing pressure valve may be allowing coolant to escape through the overflow system unnecessarily. Conversely, a stuck pressure valve can cause dangerous over-pressurization, leading to radiator, hose, or gasket failure. White residue or mineral deposits around the radiator neck often indicate improper sealing, while a collapsed upper radiator hose after cooling suggests a malfunctioning vacuum valve. Additionally, if the cooling system repeatedly requires coolant additions despite no apparent leaks, or if you observe excessive pressure buildup that causes coolant to forcefully eject from the overflow reservoir, these symptoms point to radiator cap deterioration that demands immediate replacement.

5. Cooling System Hoses - The Vital Circulation Arteries

Cooling system hoses serve as the flexible arteries that connect various components while accommodating engine movement and thermal expansion, typically constructed from reinforced rubber compounds designed to withstand extreme temperatures, pressure fluctuations, and chemical exposure from coolant additives. These hoses include the upper and lower radiator hoses, heater hoses, bypass hoses, and various smaller connections that create a sealed network for coolant circulation. The upper radiator hose carries hot coolant from the engine to the radiator, while the lower hose returns cooled fluid to the water pump inlet. Heater hoses facilitate cabin heating by routing hot coolant through the heater core, and bypass hoses allow circulation during thermostat-closed operation. Hose failure represents one of the most common cooling system problems, often occurring gradually through deterioration or suddenly through catastrophic rupture. External inspection reveals several warning signs including surface cracking, particularly near clamps and bends where stress concentrates, bulging or soft spots that indicate internal reinforcement failure, and hardening or brittleness that suggests rubber compound degradation. Oil contamination, visible as dark staining or swelling, indicates contact with petroleum products that attack rubber compounds. Internal inspection, possible by squeezing hoses when cool, may reveal collapsed sections or internal separation of reinforcement layers. Additionally, white or green residue around hose connections suggests seepage that will worsen over time, while any visible coolant drips or puddles beneath hose routing areas demand immediate attention to prevent sudden failure that could leave you stranded with an overheated engine.

6. Cooling Fans - The Airflow Enhancement System

Cooling fans provide essential airflow through the radiator when natural vehicle movement is insufficient, particularly during idle periods, stop-and-go traffic, or low-speed operation where ram air effect cannot adequately cool the radiator core. Modern vehicles typically employ electric fans controlled by temperature sensors and engine management systems, though some older vehicles still utilize engine-driven mechanical fans with viscous clutches. Electric fans offer precise control, reduced parasitic power loss, and the ability to operate after engine shutdown if needed. These fans are strategically positioned to pull air through the radiator core, creating the necessary airflow to facilitate heat transfer from the coolant to the surrounding atmosphere. Cooling fan failure presents several observable symptoms that can help identify problems before complete system breakdown occurs. The most obvious sign is engine overheating during idle or low-speed operation, while highway driving temperatures remain normal, indicating insufficient airflow when ram air effect is minimal. Audible symptoms include unusual noises such as grinding, squealing, or rattling from the fan area, suggesting bearing wear, blade damage, or mounting problems. Visual inspection may reveal damaged or missing fan blades, loose or corroded electrical connections, or obvious physical damage to the fan shroud or mounting hardware. For electric fans, testing can involve checking for power at the fan connector when the engine reaches operating temperature, or observing whether the fan operates when the air conditioning system is activated. Additionally, if you notice the fan running continuously even when the engine is cool, this may indicate a faulty temperature sensor or control module that requires professional diagnosis to prevent unnecessary battery drain and component wear.

7. Heater Core - The Cabin Comfort Heat Exchanger

The heater core functions as a miniature radiator located within the vehicle's dashboard, utilizing hot engine coolant to provide cabin heating through a heat exchange process similar to the main radiator but in reverse. This compact component receives hot coolant through inlet and outlet hoses connected to the engine's cooling system, with a blower fan forcing air across the core's fins and tubes to transfer heat into the passenger compartment. The heater core operates continuously whenever coolant circulates through the system, regardless of whether cabin heating is desired, making it an integral part of the overall cooling system that can affect engine temperature regulation. When the heater core begins to fail, it presents several distinct warning signs that range from minor inconveniences to major cooling system problems. The most common symptom is coolant leakage into the passenger compartment, often manifesting as wet carpeting on the passenger side, fogged windows that won't clear, or a sweet antifreeze smell inside the vehicle. These leaks can be particularly problematic because they may not be immediately visible, allowing significant coolant loss before detection. External signs include coolant puddles beneath the passenger side of the vehicle when parked, or visible coolant dripping from the heater core drain tube. Performance symptoms include inadequate cabin heating despite proper engine operating temperature, or conversely, excessive heat that cannot be controlled by temperature settings. Additionally, if you notice rapid coolant loss without external leaks around the engine compartment, internal heater core leakage may be the culprit, potentially leading to engine overheating if not addressed promptly.

8. Expansion Tank - The System Volume Compensator

The expansion tank, also known as a coolant reservoir or overflow tank, serves as a crucial buffer that accommodates coolant volume changes due to thermal expansion and contraction while maintaining proper system pressure and preventing air intrusion. This plastic reservoir connects to the radiator through a small hose and typically features minimum and maximum level markings to guide proper coolant maintenance. As the engine heats up and coolant expands, excess fluid flows into the expansion tank; conversely, as the system cools and contracts, coolant returns from the tank to maintain proper levels throughout the cooling circuit. Modern pressurized systems integrate the expansion tank directly into the cooling circuit, making it an active component rather than a simple overflow catch basin. Expansion tank failure can compromise cooling system integrity and presents several identifiable warning signs that warrant immediate attention. Visual inspection may reveal cracks in the plastic tank body, particularly around mounting points or where stress concentrates, leading to coolant leakage and system air intrusion. A damaged or missing cap can allow coolant evaporation and contamination, while clogged or damaged connecting hoses prevent proper fluid exchange between the tank and radiator. If you notice the coolant level consistently dropping in the expansion tank despite no visible external leaks, internal cracks may be allowing coolant to escape gradually. Additionally, if the tank appears consistently empty while the radiator remains full, or if you observe excessive pressure buildup that causes coolant to spray from the tank cap, these symptoms indicate expansion tank or associated component failure. Discolored coolant, excessive sediment, or oil contamination visible in the expansion tank often reflects broader cooling system problems that require comprehensive diagnosis and repair.

9. Temperature Sensors - The System's Diagnostic Network

Temperature sensors form the electronic nervous system of modern cooling systems, providing critical data to the engine control module (ECM) for precise thermal management, fan control, and engine protection strategies. These sensors, typically thermistors that change electrical resistance with temperature variations, monitor coolant temperature at various points throughout the system and relay this information to control modules that manage fan operation, fuel injection timing, ignition advance, and transmission shift points. The primary engine coolant temperature (ECT) sensor usually mounts in the thermostat housing or cylinder head, providing data for both engine management and dashboard gauge operation. Additional sensors may monitor radiator outlet temperature, transmission cooler temperature, or intake air temperature to optimize overall vehicle performance. Temperature sensor failure can disrupt cooling system operation and engine performance while presenting several diagnostic challenges that require systematic troubleshooting. The most obvious symptom is erratic or inaccurate temperature gauge readings, where the dashboard indicator shows incorrect temperatures, remains stuck in one position, or fluctuates wildly without corresponding engine temperature changes. Engine performance symptoms include hard starting, rough idle, poor fuel economy, or excessive emissions caused by incorrect fuel mixture calculations based on faulty temperature data. Cooling fan problems, such as continuous operation or failure to activate when needed, often trace back to temperature sensor malfunctions that provide incorrect data to the fan control module. Additionally, if diagnostic trouble codes appear related to cooling system operation, or if the engine enters "limp mode" with reduced power output, these symptoms frequently indicate temperature sensor failure that requires professional diagnosis with appropriate scan tools to identify the specific sensor and circuit problems affecting system operation.

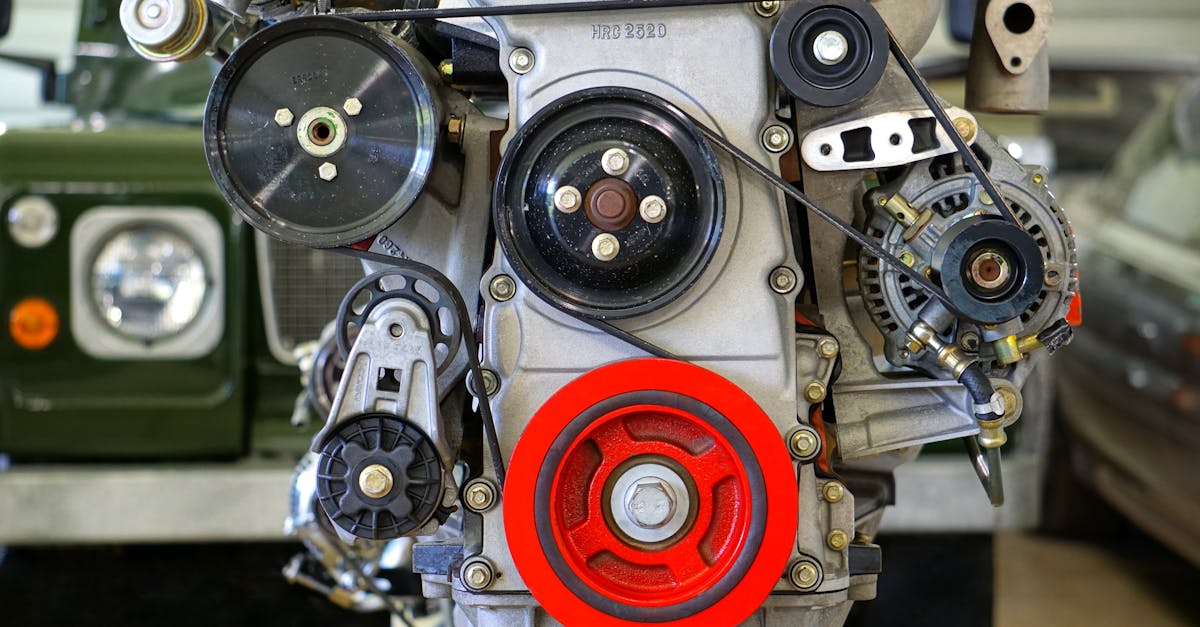

10. Drive Belts - The Power Transmission Links

Drive belts serve as the mechanical connection between the engine's crankshaft and various cooling system components, most notably the water pump and cooling fans in vehicles equipped with mechanical fan systems. Modern vehicles typically employ a serpentine belt system that drives multiple accessories from a single continuous belt, while older vehicles may use individual V-belts for each component. These rubber and fiber composite belts must maintain proper tension and alignment to effectively transfer power while withstanding extreme temperature variations, chemical exposure, and constant flexing over pulleys of different sizes. The belt's condition directly affects cooling system performance, as slippage or failure can immediately disable water pump operation, leading to rapid engine overheating. Drive belt failure presents several progressive warning signs that allow for preventive maintenance before complete system breakdown occurs. Visual inspection reveals surface cracking, particularly along the belt's inner surface where it contacts pulleys, fraying edges that indicate misalignment or excessive wear, and glazing or hardening that reduces grip and increases slippage potential. Audible symptoms include squealing noises during startup or acceleration, indicating insufficient tension or worn belt surfaces, and chirping sounds that suggest misaligned pulleys or contamination. Performance symptoms include fluctuating charging system output, intermittent power steering operation, or erratic air conditioning function, depending on which accessories share the belt system. Additionally, if you notice belt debris around the engine compartment, visible belt stretching that prevents proper tensioning, or any obvious damage such as chunks missing from the belt surface, these conditions demand immediate replacement to prevent cooling system failure. Regular belt inspection should include checking for proper tension using the manufacturer's specifications, as both over-tightening and under-tightening can cause premature failure and affect cooling system performance.

11. Proactive Maintenance for Cooling System Longevity

Understanding the intricate relationships between cooling system components and recognizing their failure warning signs represents one of the most valuable skills any vehicle owner can develop, potentially saving thousands of dollars in repair costs while preventing dangerous roadside breakdowns. Each component we've explored—from the radiator's heat exchange function to the temperature sensors' electronic monitoring—plays a critical role in maintaining optimal engine operating conditions, and failure of any single element can cascade into system-wide problems that compromise vehicle reliability and safety. The key to cooling system longevity lies in proactive maintenance that addresses minor issues before they evolve into major failures, including regular coolant changes according to manufacturer specifications, periodic inspection of hoses and belts for wear indicators, and prompt attention to any symptoms such as temperature fluctuations, unusual noises, or coolant leaks. Modern cooling systems are remarkably robust when properly maintained, but they operate under extreme conditions that gradually degrade components through thermal cycling, chemical exposure, and mechanical stress. By developing a systematic approach to cooling system monitoring—checking fluid levels monthly, observing temperature gauge behavior during daily driving, and scheduling professional inspections at recommended intervals—vehicle owners can identify potential problems early and address them cost-effectively. Remember that cooling system failure rarely occurs without warning signs, and the investment in preventive maintenance and timely repairs represents a fraction of the cost associated with engine replacement or major overhaul work that results from catastrophic overheating events.
